What Is Pulse Tig Welding: How It Works and When to Use It

What is pulse TIG welding? Pulse TIG welding is a specialized variation of tungsten inert gas welding where the electrical current alternates continuously between a high peak amperage and a lower background amperage. Instead of supplying an uninterrupted, constant stream of heat into the workpiece, a pulsed welding arc switches rapidly between melting the metal and allowing the heat to subside. This regular cycling significantly lowers average heat input into the base metal, which helps prevent burn-through on thin sheet metal, curbs panel warping, and gives the operator precise control over the weld puddle. Here is how pulse TIG welding works, why welders choose it over continuous current, and how core pulse parameters operate on modern machines.

As an Amazon Associate I earn from qualifying purchases. This guide links to our product roundups, where WeldGearLab earns a commission when you buy through links, at no extra cost to you. Read our affiliate disclosure.

What is pulse tig welding and how does it work?

Conventional TIG welding uses a steady continuous current. Once you strike the arc and set your amperage, the machine delivers constant electrical energy until you back off the foot pedal or break the arc. That continuous heat works well on thick steel plate, but on thin tubing or delicate sheet, heat builds up rapidly in the workpiece. As heat accumulates, the weld puddle can expand quickly, edges risk melting away, and thin metal may warp or burn through if travel speed and torch angle are not strictly controlled.

Pulse TIG welding manages heat accumulation by dividing the arc output into repeating cycles of high and low current. During the high-amperage phase, known as peak current, the arc delivers focused energy to penetrate the joint and create the weld puddle. Before excessive heat can spread outward into the surrounding metal, the machine drops the output to a lower base amperage, known as background current. This background arc maintains tungsten ionization and keeps the arc established without adding substantial heat. In slow-speed pulsing, this allows the molten puddle time to chill and partially solidify between peaks, while in high-speed pulsing, the rapid oscillation constricts and stabilizes the arc column. By alternating between peak and background amperage, you achieve proper joint penetration while keeping total heat input lower than continuous welding allows.

Side by side

	Standard TIG (continuous)	Low-Frequency Pulse TIG	High-Frequency Pulse TIG
Current output	Constant, unvarying amperage	Cycles between peak and background at slow rates	Cycles between peak and background at rapid rates
Weld puddle behavior	Stays continuously molten, expands as heat accumulates	Partially cools between pulses, allowing puddle chill	Remains molten while arc agitation refines puddle
Arc characteristics	Soft, standard arc cone	Rhythmic pulsing arc cone	Stiff, tightly constricted and focused arc column
Audible sound	Quiet, smooth background hum	Rhythmic pulsing cadence matching pulse tempo	Audible buzz or whine matching pulse frequency
Bead appearance	Smooth, uniform bead profile	Distinct, stacked-dimes ripple pattern	Narrow, clean bead with minimal ripples
Primary advantage	Maximum deposition and heat saturation on thick plate	Heat control on thin metal and out-of-position joints	Arc direction control and narrow seam penetration
Filler rod addition	Continuous manual feeding into fluid puddle	One dab timed with each peak pulse	Continuous manual feeding into fluid puddle
Heat-affected zone	Widest heat spread into surrounding metal	Reduced heat spread due to background cooling	Narrowest heat spread due to focused arc cone

Settings vary across machine makers and models; always follow the parameter guidelines in your equipment manual and door chart. A remote foot pedal or torch trigger switch lets you initiate the arc and control your overall welding cycle in the shop.

Why use pulse tig welding

Why use pulse TIG welding when standard DC TIG has worked for decades? Adding pulse control provides distinct mechanical and aesthetic advantages across demanding fabrication tasks:

• Preventing burn-through on thin sheet. Because the background current allows heat to dissipate between pulses, thin metal edges and auto body panels resist overheating and blowing out.
• Minimizing distortion and warpage. Thermal expansion is the primary cause of warped fabrications, especially in heat-sensitive alloys like stainless steel. Lower net heat input keeps parts flatter with less post-weld straightening.
• Controlling out-of-position welds. When welding vertically uphill, overhead, or around tubular joints, a fully molten puddle tends to sag or drip under gravity. The chilling cycle of low-frequency pulsing helps freeze the puddle, holding the bead in place.
• Uniform bead ripple appearance. At lower pulse speeds, each pulse creates an individual frozen ripple. Timing filler wire additions directly to the peak pulse creates clean, evenly spaced stack-of-dimes beads.
• Narrower heat-affected zone. Keeping arc energy concentrated along the seam protects base material mechanical properties and helps preserve corrosion resistance in stainless steel assemblies.

Our best TIG welder for aluminum guide covers dedicated AC/DC machines, while our guide to the best TIG torch examines air-cooled and water-cooled torches for shop fabrication.

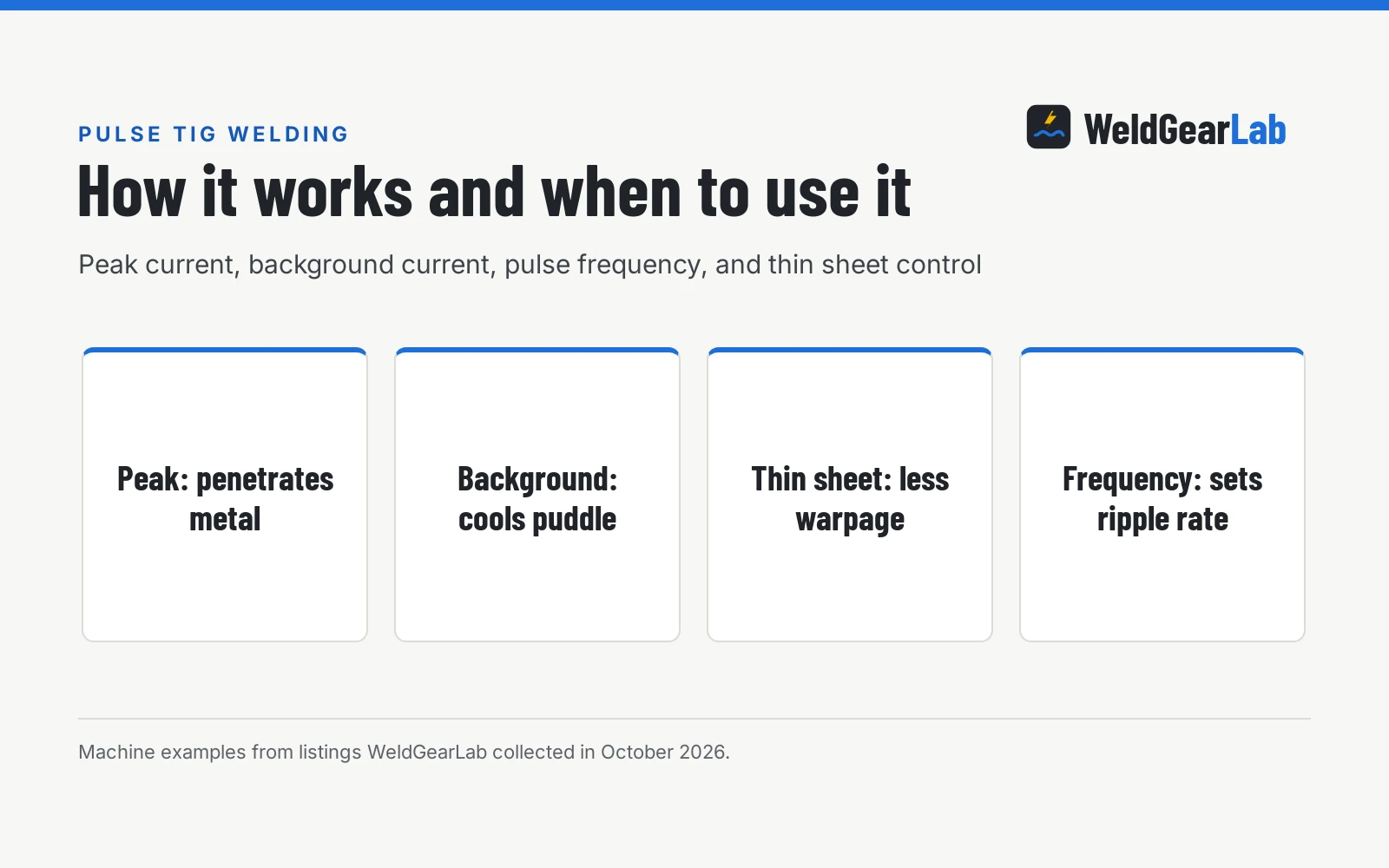

Core pulse settings and how they work

Setting up a pulse TIG welder involves balancing several interrelated controls. While simple machines offer fixed synergic pulsing, fully adjustable inverters allow operators to tailor every aspect of the waveform:

• Peak current (peak amperage). This is the maximum amperage reached during the pulse cycle. Peak current establishes joint penetration and melts the base metal and filler rod.
• Background current (base amperage). This is the lower amperage floor between peaks. It keeps the electrical arc lit while allowing the puddle to chill. Setting background current too low can lead to arc instability, while setting it too high diminishes the heat-reduction benefit.
• Pulse frequency (pulses per second). Measured in hertz, pulse frequency indicates how many complete peak-and-background cycles occur each second. Low frequencies allow manual filler rod synchronization and visible ripple control, while high frequencies constrict and stiffen the arc cone for directional control and narrower seams.
• Pulse width (peak time or duty cycle percentage). This defines the percentage of total cycle time spent at peak current versus background current in each individual cycle. Increasing peak time increases overall heat and penetration, while decreasing it keeps the workpiece cooler.

Pulse TIG features on real machines

Manufacturers implement pulse controls across diverse inverter configurations, ranging from dedicated DC sheet metal units to full AC/DC multi-process setups. Reviewing published specifications illustrates the ranges available to home and small-shop fabricators:

On the AHP Alpha-TIG 225Xi, the maker specifies an adjustable pulse frequency from 0.5 to 200hz, giving the operator flexibility from slow ripple timing up to high-speed arc constriction. The listing lists a minimum start output of DC 5 amps and AC 20 amps, delivering 150 amp output on 120v power and a full 225 amp output on 240v power. For shielding control, the machine provides 0-10 sec pre-flow and 0-10 sec post-flow adjustments, alongside 2T and 4T torch trigger modes. AHP also lists its AlphaTIG 203Xi model with pulse capability rated for 1/4″ aluminum and 3/8″ mild steel on 110/220 volts, backed by a 3 YEARS WARRANTY.

For dedicated steel and stainless sheet metal, the ARCCAPTAIN TIG 205P Pro lists fully adjustable controls for pulse frequency, duty cycle, peak current, and base current, with a 3-year warranty and dual-voltage 120V/240V operation. However, its maker specifies DC output only with no AC function, noting explicitly that it is not suitable for aluminum welding, making it tailored for thin mild steel, stainless steel, and copper.

Fabricators needing aluminum capability look to AC/DC pulsed inverters. The YESWELDER TIG-200P ACDC listing provides both AC Pulse TIG and DC Pulse TIG with up to 200 amps of output on 110V/220V dual voltage. The manufacturer lists it for aluminum up to 1/8″ thick, featuring square wave, triangle wave, and sine wave shapes, along with a 5 pin foot pedal connection. For multi-process versatility, the TOOLIOM 110/220V CT-520D combines a 200A TIG welder with pulsed TIG high-low current alternation for heat control and reduced distortion, while the AWT 180A machine features DC pulse modes and memory storage for up to 5 sets of custom welding parameters on 110V/220V power with 2T and 4T modes.

Can one TIG machine do both?

Yes. Modern inverter welders do not force you to pick between standard continuous arc and pulse. Solid-state microprocessor controls allow machines to toggle seamlessly between standard DC TIG for thick plate and pulsed modes for delicate work. If you plan to fabricate aluminum, ensure the unit specifies AC TIG output in addition to DC, as DC output without an alternating current cleaning cycle cannot strip the durable oxide layer from aluminum under argon shielding. Choosing a dual-voltage unit allows you to run on household circuits or full shop power; see our comparison of 120V vs 240V welder outlets and our guide to the best welder for beginners.

Arc flash, gas, and electrical safety. TIG welding arcs emit intense ultraviolet and infrared radiation that can cause rapid cornea burns (arc eye) and skin damage. Always weld using a properly shaded auto-darkening helmet and wear flame-resistant welding jackets and dry leather gloves. Compressed argon shielding gas cylinders must be chained upright to a wall or cylinder cart with regulators inspected for leaks; because argon is an odorless gas that displaces oxygen, ensure your shop has adequate air exchange. Never touch the tungsten electrode while the machine is energized, and always inspect ground clamps and cable insulation before striking an arc.

Frequently Asked Questions

Is pulse TIG welding harder to learn than standard TIG?

Pulse TIG introduces additional variables like background current and frequency, which requires understanding how each setting influences heat. However, on thin sheet metal, pulsing is often more forgiving because it prevents rapid overheating and accidental burn-through holes. Once baseline settings are dialed into the machine, many operators find puddle control easier than with continuous current.

Can you pulse TIG weld aluminum?

Yes, but the machine must support AC pulse welding rather than DC pulse only. Aluminum requires alternating current to clean the tough oxide surface layer while melting the base metal. Units like the YESWELDER TIG-200P ACDC provide AC pulse modes specifically for aluminum work, whereas DC-only pulse welders cannot clean aluminum oxide.

What shielding gas is used for pulse TIG welding?

Pure argon is the standard shielding gas for both pulse TIG and conventional TIG welding on mild steel, stainless steel, and aluminum. Argon provides reliable high-frequency arc starting and excellent atmospheric shielding without contaminating the tungsten electrode. Never use CO2 or oxygen blends, as reactive gases will rapidly burn the tungsten.

Does pulse TIG welding eliminate metal warping completely?

Pulsing significantly reduces heat input and minimizes distortion compared to continuous current, but it does not eliminate thermal expansion entirely. Proper joint clamping, tack welding, heatsinks, and careful travel speed remain essential practices on thin sheet metal. Combining pulse settings with proper mechanical clamping yields the flattest finished assemblies.

When should you avoid using pulse TIG?

Pulse TIG offers little advantage on thick structural steel plates where deep, maximum heat saturation is needed across the entire joint. On heavier material, standard continuous amperage achieves full penetration faster without requiring high peak currents. Pulse is primarily intended for thin gauge sheet, heat-sensitive alloys, out-of-position joints, and cosmetic finish passes.
